Product Details:
Payment & Shipping Terms:
|
Materials: | Galvanized Steel | Axle: | Two |
---|---|---|---|
Payload: | 4500kgs | Net Weight: | 612kgs |
Length: | 960cm | Certificate: | CE |
High Light: | Foldable Boat Trailer,Two Axle Boat Trailer |

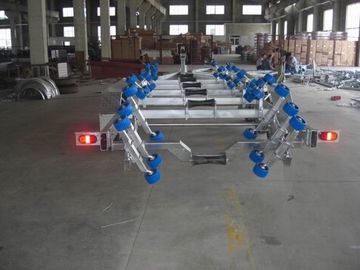

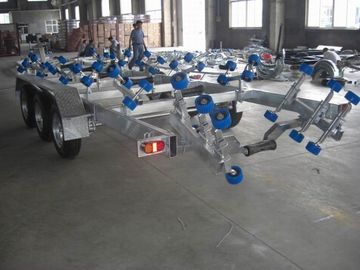

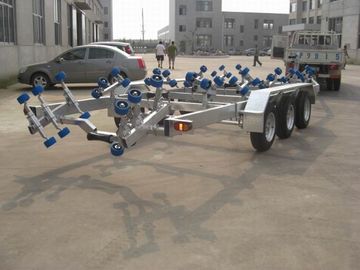

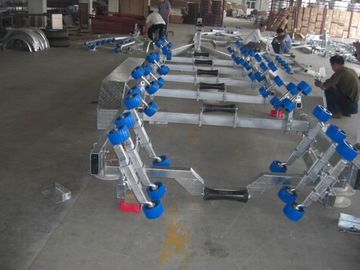

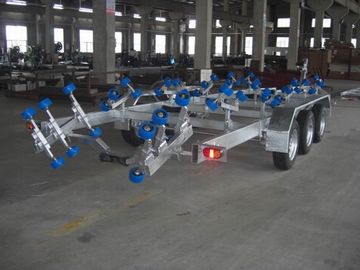

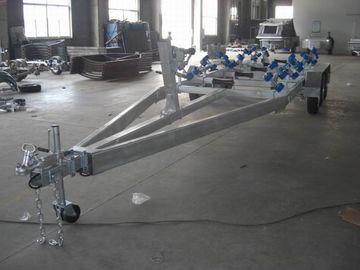

960cm long heavy Galvanized steel boat trailer TR960 for rib boats and fiberglass boats in all sizes with big payload
Our boat trailers are made of galvanized steel for RIB and fiberglass boats
Generally, a boat trailer is designed to tow a boat on land. It consists of jack, hand winch, hitch ball, coupler and trailer.
In the most basic terms , a boat trailer is a wheeled frame made to transport a boat across land by towing it behind a any vehicle . The frame could be basic for all boats .
The boat trailer is linked to a car or truck by way of a locking coupler placed at the end of the tow bar .
Before towing a boat , make sure that the winch and coupler both have been locked and the boat is now secure
Features :
A: Galvanized steel
B:For rib and fiberglass boats
C: All sizes for the rib boats
D: Big payload
Basic data : Customized size can be accepted .
MODEL | LENGTH(MM) | WIDTH(MM) | TYRE | AXLE | PAYLOAD(KGS) |
NET WEIGHT (KG) |
TR330 | 3480 | 1570 | 155R12 | One axle | 500 | 196 |
TR350 | 3680 | 1570 | 155R12 | One axle | 500 | 199 |
TR390 | 3850 | 1570 | 155R12 | One axle | 600 | 202 |
TR430 | 4330 | 1570 | 155R12 | One axle | 700 | 216 |
TR480 | 4580 | 1730 | 155R12 | One axle | 700 | 223 |
TR520 | 4880 | 1730 | 155R12 | One axle | 1050 | 226 |
TR550 | 5180 | 1730 | 155R12 | One axle | 1050 | 230 |
TR580 | 5900 | 2070 | 175/180R13 | One axle | 1250 | 325 |
TR600 | 6090 | 2070 | 175/180R13 | One axle | 1350 | 339 |
TR680 | 6930 | 2180 | 185R14 | One axle | 1600 | 356 |
TR700 | 7100 | 2180 | 185R14 | One axle | 2000 | 366 |
TR830 | 8500 | 2690 | 185R14 | Two axles | 3400 | 585 |
TR960 | 9550 | 2690 | 185R14 | Two axles | 4500 | 612 |
Both uniaxial brake and biaxial brake are available .
