Materials: | Galvanized Steel | Axle Type: | Single |
---|---|---|---|
Payload: | 1050kgs | Net Weight: | 230kgs |
Length: | 550cm | Certificate: | CE |
High Light: | Foldable Boat Trailer,Two Axle Boat Trailer |

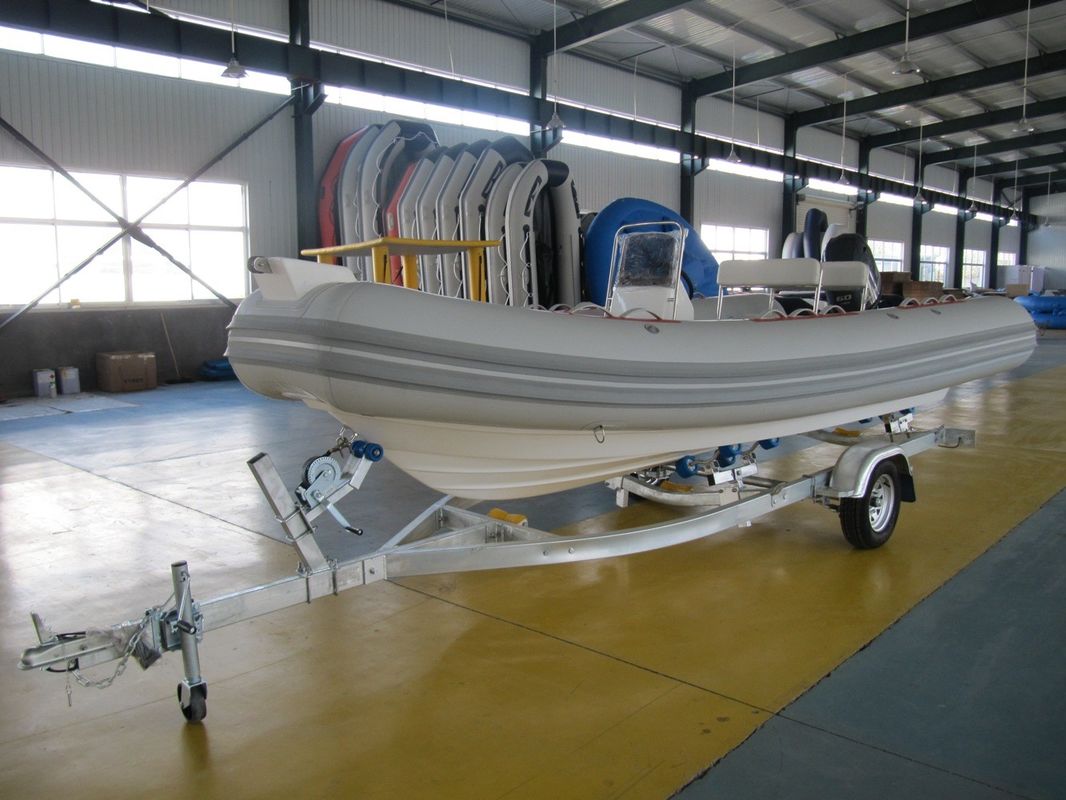

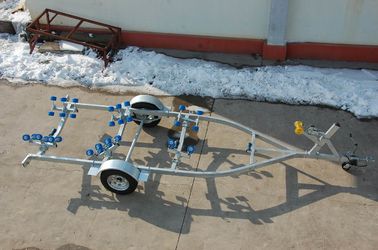

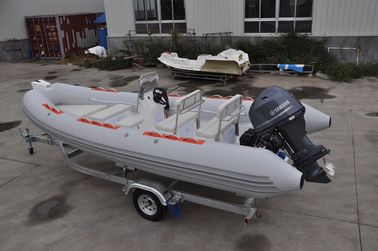

550cm long Galvanized steel boat trailer TR550 for rib boats and fiberglass boats in all sizes with big payload
Our boat trailers are made of galvanized steel for RIB and fiberglass boats
Basic Features :
A: Galvanized steel
B:For rib and fiberglass boats
C: All sizes for the rib boats
D: Big payload
Basic data : Customized size can be accepted .
MODEL | LENGTH(MM) | WIDTH(MM) | TYRE | AXLE | PAYLOAD(KGS) |
NET WEIGHT (KG) |
TR330 | 3480 | 1570 | 155R12 | One axle | 500 | 196 |
TR350 | 3680 | 1570 | 155R12 | One axle | 500 | 199 |
TR390 | 3850 | 1570 | 155R12 | One axle | 600 | 202 |
TR430 | 4330 | 1570 | 155R12 | One axle | 700 | 216 |
TR480 | 4580 | 1730 | 155R12 | One axle | 700 | 223 |
TR520 | 4880 | 1730 | 155R12 | One axle | 1050 | 226 |
TR550 | 5180 | 1730 | 155R12 | One axle | 1050 | 230 |
TR580 | 5900 | 2070 | 175/180R13 | One axle | 1250 | 325 |
TR600 | 6090 | 2070 | 175/180R13 | One axle | 1350 | 339 |
TR680 | 6930 | 2180 | 185R14 | One axle | 1600 | 356 |
TR700 | 7100 | 2180 | 185R14 | One axle | 2000 | 366 |
TR830 | 8500 | 2690 | 185R14 | Two axles | 3400 | 585 |
TR960 | 9550 | 2690 | 185R14 | Two axles | 4500 | 612 |
Both uniaxial brake and biaxial brake are available .
