Home ProductsTransparent Inflatable Boat

Clear Bottom Boat With Transparent PE Bottom , 360cm V Shape Glass Floor Boat

Certification
Good quality Small Rib Boat for sales
I'm Online Chat Now

Clear Bottom Boat With Transparent PE Bottom , 360cm V Shape Glass Floor Boat

China Clear Bottom Boat With Transparent PE Bottom , 360cm V Shape Glass Floor Boat supplier
Clear Bottom Boat With Transparent PE Bottom , 360cm V Shape Glass Floor Boat supplier Clear Bottom Boat With Transparent PE Bottom , 360cm V Shape Glass Floor Boat supplier Clear Bottom Boat With Transparent PE Bottom , 360cm V Shape Glass Floor Boat supplier

Large Image :  Clear Bottom Boat With Transparent PE Bottom , 360cm V Shape Glass Floor Boat

Product Details:

Place of Origin: China
Brand Name: CMEC
Certification: CE
Model Number: TV360

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negiotate
Packaging Details: Carton
Delivery Time: 10 days for one sample
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 pcss per Month
Contact Now
Detailed Product Description
Long: 360cm Materials: Clear PE+ Inflatable Tube
Purpose: Clear View To The Undersea Net Weight: 69KGS
Max Power: 20 HP Tube Diameter: 45cm
High Light:

Glass Bottom Boat

,

Portable Inflatable Boat

360cm PVC or hypalon V shape Transparent bottom inflatable rib boat TV360 with clear view



Application:

For sightseeing and entertainment in tourist attractions lakes

For fishing in pond, river or reservoir

Serve as survival stand-by boat for vessel or yacht etc.

Serve as lifeboat in flood disaster

For Sports and Exercises



This transparent boat is made of transparent PE bottom in 5mm thick and PVC tube , which has the nice view of the underwater !



The transparent PE bottom is specially made to suitable boat use and with the suitable rigidty , neither soft nor hard !!





1. Techinical data :



  Overall Overall tube   Max Max Weight
Model Length Width diameter Chamber Power Capacity
(cm) (cm) (cm)   (HP) (person) KGS
TF-230 230 131 35 3 5 2 34.5
TF-250 250 131 35 3 8 2.5 37.5
TF-270 270 152 40 3 10 3 40.5
TF-300 300 152 40 3 12 3 45
TF-330 330 154 43 3 15 4 49.5
TV-360 360 164 45 3 20 5.5 69



Remarks:TF series means flat transparent floor ;TV series means V shape transparent floor.



2. Standard Fittings :



 Two Piece Aluminum Oars,

one Marine Grade Plywood Seat,

Foot Pump, Repair Kit, Boat Carry Bag



3. Optional accessories:



Inflatable Thwart, Under Seat Storage Bag,

Bow Storage Bag, Inflatable Boat Cover, Floor bag,

Extra Seats,transom wheel ,bow tent;



4. After-sale service :



 3 Years to the boat itself warranty , except the consumable  parts .



5. PVC Colors chart

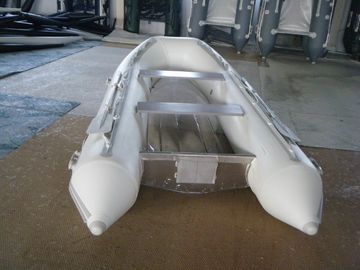

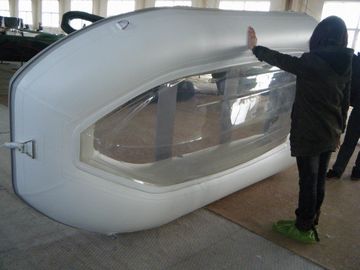

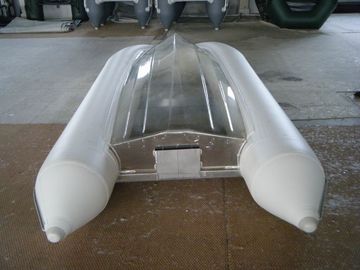

Clear Bottom Boat With Transparent PE Bottom , 360cm V Shape Glass Floor Boat







Clear Bottom Boat With Transparent PE Bottom , 360cm V Shape Glass Floor Boat
