3.6 M Transparent Inflatable Boat 164 Cm Width Lightweight Impact Resistance

Certification
Good quality Small Rib Boat for sales
I'm Online Chat Now

3.6 M Transparent Inflatable Boat 164 Cm Width Lightweight Impact Resistance

China 3.6 M Transparent Inflatable Boat 164 Cm Width Lightweight Impact Resistance supplier
3.6 M Transparent Inflatable Boat 164 Cm Width Lightweight Impact Resistance supplier 3.6 M Transparent Inflatable Boat 164 Cm Width Lightweight Impact Resistance supplier 3.6 M Transparent Inflatable Boat 164 Cm Width Lightweight Impact Resistance supplier

Large Image :  3.6 M Transparent Inflatable Boat 164 Cm Width Lightweight Impact Resistance

Product Details:

Place of Origin: China, Shandong
Brand Name: CMEC
Certification: CE
Model Number: TV360

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negiotate
Packaging Details: Carton
Delivery Time: 10 days for one sample
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 pcss per Month
Contact Now
Detailed Product Description
Materials: Transparent PE + PVC Or Hypalon Long: 3.6m
Width: 164cm Net Weight: 69KGS
Max Power: 20HP Color: In All Colors
Tube Diameter: 45cm Chamber: 3
High Light:

Clear Bottom Boat

,

Portable Inflatable Boat

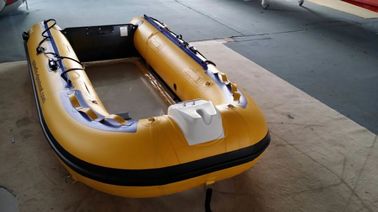

3.6m PVC or hypalon V shape  Transparent bottom inflatable rib boat TV360 with clear undersea view

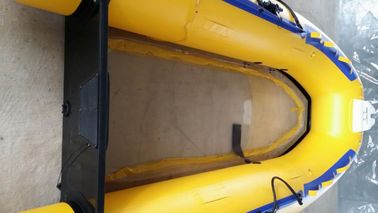

This transparent boat is made of transparent PE bottom in 5mm thick and PVC tube , which has the nice view of the underwater !



The transparent PE bottom is specially made to suitable boat use and with the suitable rigidty , neither soft nor hard !!



Transparent hull - easy to enjoy more vision from bottom of the kayak

Light weight – convenient to carry about and move freely

Impact resistance – polycarbonate body make it much more strong and tough

Inflammability – good flame resistant, burning point is 630℃



Transparent bottom rib boat with nice view  of the underwater , you can enjoy the wonderful   undersea world and have fun  of all kinds of lovely marine life !!! You never image what is the feeling when you see the fish ,water plants from the transparent bottom , take it !!!!



1. Technical Data



  Overall Overall tube   Max Max Weight
Model Length Width diameter Chamber Power Capacity
(cm) (cm) (cm)   (HP) (person) KGS
TF-230 230 131 35 3 5 2 34.5
TF-250 250 131 35 3 8 2.5 37.5
TF-270 270 152 40 3 10 3 40.5
TF-300 300 152 40 3 12 3 45
TF-330 330 154 43 3 15 4 49.5
TV-360 360 164 45 3 20 5.5 69



Remarks:TF series means flat transparent floor ;TV series means V shape transparent floor.



2. Standard Fittings



 Two Piece Aluminum Oars,  Marine Grade Plywood Seat,

Foot Pump, Repair Kit, Boat Carry Bag



3. Optional accessories:



Inflatable Thwart, Under Seat Storage Bag,

Bow Storage Bag, Inflatable Boat Cover, Floor bag

Extra Seats,transom wheel ,bow tent;



4  Boat Quality Guarantee:



 3 Years to the boat itself warranty , except the vulnerable  parts .

3.6 M Transparent Inflatable Boat 164 Cm Width Lightweight Impact Resistance



3.6 M Transparent Inflatable Boat 164 Cm Width Lightweight Impact Resistance
