V - Shaped Bottom Catamaran Work Boat Easy Install 410cm With Fiberglass Plate

Certification
Good quality Small Rib Boat for sales
I'm Online Chat Now

V - Shaped Bottom Catamaran Work Boat Easy Install 410cm With Fiberglass Plate

China V - Shaped Bottom Catamaran Work Boat Easy Install 410cm With Fiberglass Plate supplier
V - Shaped Bottom Catamaran Work Boat Easy Install 410cm With Fiberglass Plate supplier V - Shaped Bottom Catamaran Work Boat Easy Install 410cm With Fiberglass Plate supplier

Large Image :  V - Shaped Bottom Catamaran Work Boat Easy Install 410cm With Fiberglass Plate

Product Details:

Place of Origin: China
Brand Name: CMEC
Certification: CE
Model Number: HC-410

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiate
Packaging Details: carton
Delivery Time: 8 days for one sample
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 pcs per Month
Contact Now
Detailed Product Description
Materials: PVC And Aluminum Floor Use: High Racing
Length: 410cm Max Power: 40HP
Max Crew: 4 Type: Catamaran
High Light:

Catamaran Fishing Boats

,

Catamaran Power Boats

410cm inflatable catamaran work boat HC-410 high-speed cat with fiberlass plate



HC-F series  is with fiberglass front of the storage locker !!!!



 High speed cat , less weight , catamaran sailing on the sea but into the shallow water !



Inflatable Catamaran is specially designed for professional use as work boats or rescue boats with a heavy load capacity, spacious deck, V-shape bottom.

Our Inflatable Catamaran are made of 1100 Denier Korean PVC fabric with polyester support that has excellent resistance to tearing, tension and breaking. It is a much more heavy-duty PVC fabric than most of our competitors with 1100 Denier PVC boats.



Stronger layer of fabric at the bottom of the tubes and rub-strake protector along the keel provide extra protection from sharp rocks and abrasive sand. The safety valve will prevent excessive air pressure in the boats chambers.



1. Technical data : We can make the catamaran as customer's requirement on size , more bigger size can be available .



Model

Length

(cm)

Width

(cm)

Inner Width

(cm)

Chamber

Power

(HP)

Weight

(KGS)

HC410 410 187 84 4 40 76
HC-450 450 187 84 4 50 83
HC-470 470 187 84 4 50 90
HC-500 500 214 110 4 60 120
HC-450F 450 214 125 4 50 135
HC-480F 480 214 125 4 50 150
HC-550F 550 214 125 4 100 160
HC-430A 430 200 100 4 30 70



2. Standard euipments :

HC serial cataraman standard equipment: standard fibergalss front, alloy floor,alloy transom, 1xrepair kit, 1xfoot pump



HCF serial cataraman standard equipment: Extra wider fibergalss front, alloy floor,alloy transom,fiberglass steps,1xrepair kit, 1x foot pump.



HC430A Features: Airmat front and airmat floor to get less weight(70kg) and smaller package dimension (180x80x50cm)



3. Optional equipments :



  Bimini Top , jockey console , SS transom

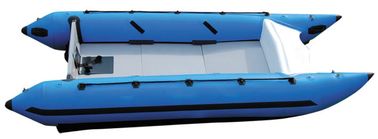

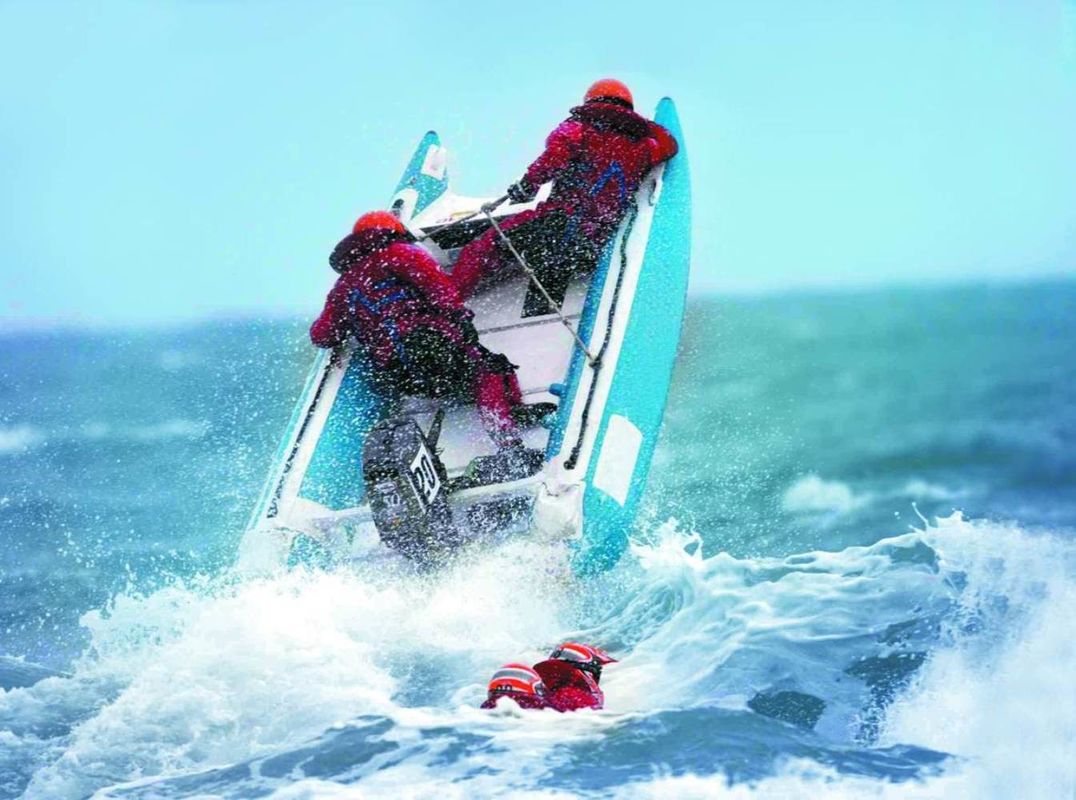

4. Reference pictures



V - Shaped Bottom Catamaran Work Boat Easy Install 410cm With Fiberglass Plate





V - Shaped Bottom Catamaran Work Boat Easy Install 410cm With Fiberglass Plate
