Product Details:
Payment & Shipping Terms:
|
Materials: | Fiberglass | Use: | Pleasure Fishing |
---|---|---|---|
Height: | 0.9m | Weight: | 410kgs |
Width: | 1.9m | Color: | White Or Other |
Passenger: | 3-8 Persons | ||
High Light: | Fiberglass Hull Boat,Offshore Fishing Boats |

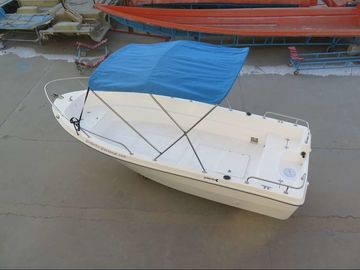

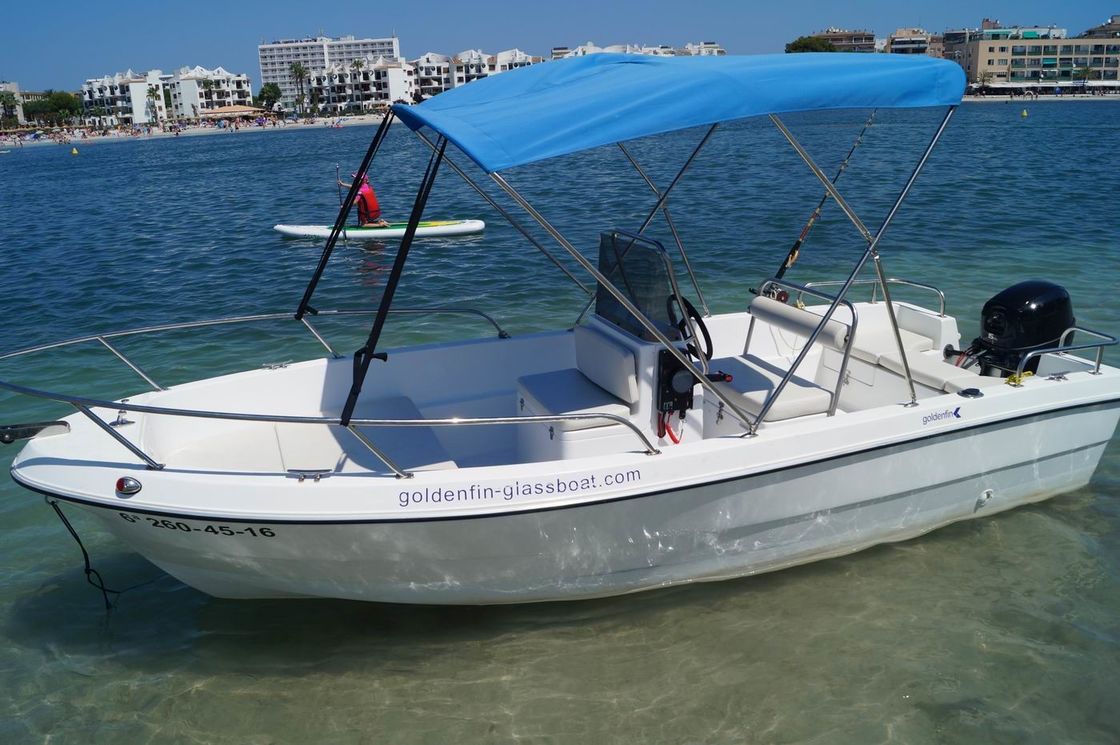

5m full fiberglass hull fiberglass fishing boat JR500A with big fishing tank and bimini top !!!
This boat can be added sunbath panel ,which is the best for fun ,for pleasure fishing or for tourist business ! You can make the boat color as the color you prefer !!!
1. Basic Data :
Length | Width | Height | Power |
Weight |
Passenger | |
5 m | 1.9 m | 0.9 m | 40HP | 410KGS | 3-8 | |
Container capacity | Height of Poopdeck | |||||
20 GP | 40 HQ | 25〞 | ||||
2pcs | 5 pcs |
2. Standard equipment
ITEM | QUAN |
FRP Hull | 1 set |
Fishing Tank 120L | 1 set |
SUS 304 SS handrail | 1 set |
Sewage pump &auto switch | 1 set |
3. Optional equipment:
ITEM | QUAN |
Central console with front seat |
1set |
Double seats including 304 back &cushion | 1set |
80L Alu. fuel tank including filler , vent,liquid level sensor ,oil gage etc | 1set |
Rod holder | 1pc |
Maintance free battery &battery box 60AH | 1set |
Cushions including one in the front ,three on the back | 1set |
Folding canopy | 1set |
4.Standard equipments list of FRP HULL
Number | Item | Unit | Quantity |
1 | 6″cleats | pc | 4 |
2 | single cross bitt | pc | 1 |
3 | Anchor rack | pc | 1 |
4 | U Bolt | set | 3 |
5 | Plank | pc | 1 |
6 | Anchor warehouse water cap | pc | 1 |
7 | Semicircle hinges | pc | 6 |
8 | Five holes hinges | pc | 2 |
9 | Floor lock | pc | 2 |
10 | Door plank of heavy buckle | set | 2 |
11 | Valve for fishing tank | set | 4 |
12 | Deck water valve | set | 2 |
13 | 8″hand hole | pc | 1 |
14 | 4″ hand hole | pc | 2 |
15 | Battery switch with proction bag | set | 1 |
16 | 4″round cowling flap | pc | 1 |
17 | Stern shaft mouth water | pc | 2 |
18 | Soft shaft holder | pc | 2 |
19 | Accelerator cable gland | set | 1 |
20 | 1″ SS water outlet | pc | 1 |
21 | Nylon water drain valve | pc | 2 |
22 | Stern water drain valve | pc | 1 |
23 | Alu. fender | set |
1 |
5. Basic information :
1. Wider body ensures a better lateral stability.
2. Special design of the bottom ensures the better balance.
3. 120L live fish cabin with 4 valves allowing fresh sea-water in and out.
4. Spacious deck
5. Lower oil consumption
6. Value cost-effective
