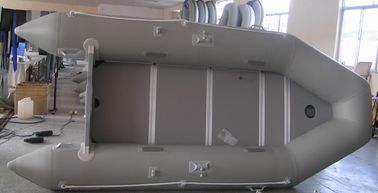

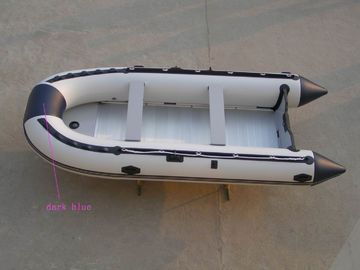

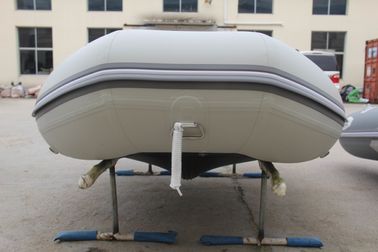

Small Size Inflatable Sport Boat BD360 Portable Pontoon Boats For Fishing
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Materials: | PVC | Floor: | Alimunum Floor |
|---|---|---|---|
| Length: | 360cm | Power: | 15HP |
| Weight: | 76KGS | Color: | All Colors |
| Max Persons: | 5+1 | ||
| High Light: | Roll Up Inflatable Boat,Folding Sailing Dinghy |
||
360cm PVC small water sightseeing inflatable sports boat with Aluminum floor BD360 in cheap price for fishing
1. Basic features :
The floor of our sports inflatable boat is flexible, which is usually made of rigid plywood, synthetic plastic or aluminium alloy. It is kept rigid crossways by an aluminium thwart. After the floor has been mounted and chambers on the board and cone keelson have been inflated, the bottom of the boat will be stretched into V-shape, giving the boat better performance on turning tracking and water displacement. Although this type of bottom floor is heavier than that of other pneumatic boats, it can be equipped with 2-75HP outboard engine for higher running speed.
2. Specification Data :
| Model | Length (cm) | Width (cm) | Tube Dia (cm) | Max. persons | Max. power HP | Chamber NO. | Max load (kg) | Package size |
| BD230 | 230 | 127 | 33 | 2+1 | 2 | 3+1 | 250 | 98×60×30 |
| BD250 | 250 | 151 | 42 | 2+1 | 2 | 3+1 | 330 | 98×60×31 |
| BD270 | 270 | 151 | 42 | 3+1 | 7.5 | 3+1 | 350 | 120×63×32 |
| BD300 | 300 | 151 | 42 | 4+1 | 10 | 3+1 | 450 | 120×63×32 |
| BD330 | 330 | 151 | 42 | 4+2 | 15 | 3+1 | 550 | 115×60×35 |
| BD360 | 360 | 170 | 44 | 5+1 | 15 | 3+1 | 550 | 129×74×35 |
| BD380 | 380 | 170 | 44 | 6+1 | 20 | 3+1 | 660 | 129×74×35 |
| BD410 | 410 | 200 | 50 | 7+1 | 25 | 4+1 | 760 | 134×80×40 |
| BD430 | 430 | 200 | 50 | 8+1 | 25 | 4+1 | 860 | 134×80×40 |
| BD470 | 470 | 200 | 50 | 10+1 | 50 | 5+1 | 1050 | 134×80×40 |
| BD500 | 500 | 230 | 60 | 12+1 | 60 | 5+1 | 1250 | 133×80×40 |
| BD585 | 585 | 248 | 63 | 14+1 | 60 | 7+1 | 1450 | 180×80×45 |
| BD650 | 650 | 248 | 63 | 16+2 | 75 | 7+1 | 1650 | 180×80×45 |
| BD700 | 700 | 265 | 70 | 20+2 | 75 | 7+1 | 2050 | 200×80×50 |
3. Standard configuration :
| two pieces of aluminum oars | +Marine Grade Plywood bench seat | Foot pump |
| Repairing kits | Carrying bag | Oar lock/oar holder |
| Life line | Lifting handle | Super D-ring |
| Rubbing Strake fender | Drain plug set | Motor pad inside/outside |
| V-keel |
4. Optional fittings :
Inflatable thwart
Under seat bag
Front bag
Boat cover
Extra seat
Canopy
5. After-sale service :
We also provide excellent after-sale services and 3 to 5 year warranty of the hull and materials.Each boat comes with a repair kit containing the maintenance tools and materials(fabrid and glue).The replacement parts will be offered for free within warranty period.In the event that the boat has really quality defects within warranty period,we will offer free replacement parts after the receipt of the related pictures and descriptions supporting the factor； In case of serious quality problems ,a replacement boat will be sent to the customers with next order shipment.
6.Alternative floor :
1. Air Mat floor
The airmat floor is cleverly designed with thousand of polyester threads criss-crossing one another, it is inflated to a high pressure, proving as tough and rigid as a conventional wooden floor but with the added lightness and comfort. Its small size allows it to be easily transported and stored in tight spaces.
2. Plywood floor:
Economical & simple to use . It is plywood-board system, makes it the ideal choice for day tripping and fishing activities alike. Its aluminum frame is strong and durable for years of dependable use.
