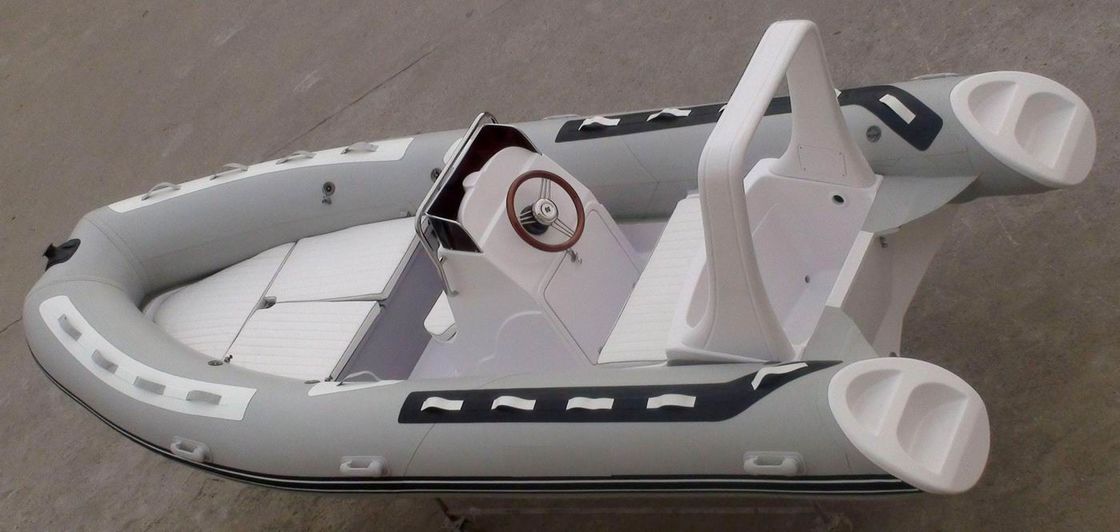

Solid Inflatable Rib Boat Elegant Design 17 Ft Panga Style Boats With Canopy

China Solid Inflatable Rib Boat Elegant Design 17 Ft Panga Style Boats With Canopy supplier
Solid Inflatable Rib Boat Elegant Design 17 Ft Panga Style Boats With Canopy supplier Solid Inflatable Rib Boat Elegant Design 17 Ft Panga Style Boats With Canopy supplier Solid Inflatable Rib Boat Elegant Design 17 Ft Panga Style Boats With Canopy supplier

Large Image :  Solid Inflatable Rib Boat Elegant Design 17 Ft Panga Style Boats With Canopy

Product Details:

Place of Origin: China, Shandong
Brand Name: CMEC
Certification: CE
Model Number: Rib520B

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Carton and weaving bag
Delivery Time: 8-10 days for sample
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 PCS per Month
Contact Now
Detailed Product Description
Materials: Fiberglass Hull + PVC Tube Beam: 210cm
Weight: 260KGS Power: 90HP
Hull Width: 175cm Max Person: 8 P
High Light:

Rigid Inflatable Boat

,

PVC Inflatable Boat

17ft Korea PVC big sunbath panga boat  inflatable rib boat rib520B with center console fibberglass step



Rigid inflatable boat/RIB boat 5.2m, 8+1 persons PVC or hypalon

1. Deep-V fiberglass bottom makes it stable and strong.

2. PVC net clamping cloth makes it resistant and intensive.

3. Humanized and elegant design

4. Large cushions panel for enjoy sunbathing

5. High texture Italy wooden steering wheel to you wondefful driving

6.Enjoy splendid water sport fun


Rigid inflatable boat (RIB) is a light boat constructed with a solid, shaped hull and flexible tubes at the gunwale. Featuring stable design, high performance and high capacity, it is a development of the inflatable boat. The inflatable collar allows the vessel to maintain buoyancy even if a large quantity of water is shipped aboard due to bad sea conditions.



1. Specification



Model Length(cm) Beam(cm) Hull length(cm) Hull width(cm) No.of chamber Tube Dia.(cm) Max persons Engine power(HP) Net weight(kgs) Packing size(cm)
RIB520B 520 210 460 175 5 53 8 90 260 460*180*100



2. Standard Euipments :



center console with cushions(including windshield,

4 point switch ,oil gauge), seat box with cushions  ,

bow box with cushions ,

steering system,FRP light arch ,fuel tank,+

Foot pump; +Repair Kit; +boat cover



3. Optional Equipments :



 canopy , boat trailer ,fiberglass step ,  etc.



4. Other Features :









All our inflatable boats use 0.9mm or1.2mm or hypalon  , 1100 denier polyester fabric that has been specially coated on both sides with PVC. It is proven to be immensely strong, tear resistant and waterproof. This provides a boat that is virtually unaffected by weather (excesses of heat, cold or humidity), fuel, oil, strong sunlight and everyday abrasion.



The chemical formula that is used to make the outside PVC layer gives the following tolerances & qualities:

  • Abrasion resistance and airtight properties: 200*170 N/5cm +20

  • Temperature resistance: -30 to +70 centigrade

  • Chemical resistance: hydrocarbon, sunlight, seawater, oil and fuel

  • Dimensional stability: 1% (24 hrs, 70 centigrade)

  • Tensile and tear strength: 3800*3550 (+250)

5. Guarantee



We also provide excellent after-sale services and 3 - 5 year (3 years for PVC , 5 years for Hypalon )

warranty of the hull and materials.Each boat comes with a repair kit containing the maintenance tools and materials(fabrid and glue).The replacement parts will be offered for free within warranty period.In the event that the boat has really quality defects within warranty period,we will offer free replacement parts after the receipt of the related pictures and descriptions supporting the factor; In case of serious quality problems ,a replacement boat will be sent to the customers with next order shipment.







Solid Inflatable Rib Boat Elegant Design 17 Ft Panga Style Boats With Canopy

Solid Inflatable Rib Boat Elegant Design 17 Ft Panga Style Boats With Canopy



2016 new rib catalog.pdf
