17ft orca hypalon inflatable rib boat rib520A with sunbed center console rear cabin CE certificate

Certification
Good quality Small Rib Boat for sales
I'm Online Chat Now

17ft orca hypalon inflatable rib boat rib520A with sunbed center console rear cabin CE certificate

China 17ft orca hypalon inflatable rib boat  rib520A with sunbed center console rear cabin CE certificate supplier
17ft orca hypalon inflatable rib boat  rib520A with sunbed center console rear cabin CE certificate supplier 17ft orca hypalon inflatable rib boat  rib520A with sunbed center console rear cabin CE certificate supplier 17ft orca hypalon inflatable rib boat  rib520A with sunbed center console rear cabin CE certificate supplier

Large Image :  17ft orca hypalon inflatable rib boat rib520A with sunbed center console rear cabin CE certificate

Product Details:

Place of Origin: China
Brand Name: CMEC
Certification: CE
Model Number: Rib520A

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Carton and weaving bag
Delivery Time: 8-10 days for sample
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 PCS per Month
Contact Now
Detailed Product Description
Materials: Fiberglass +hypalon Length: 17ft
Weight: 400KGS Max Power: 90HP
Chamber: 5 Max Person: 9

17ft orca hypalon inflatable rib boat rib520A with sunbed center console rear cabin CE certificate



This is the Medium size rib520A ,  deluxe console RIB packed with a dual seat and backrest and console has a custom SS rail and included fitted side seat. This boat has a bigger inner space , and  the fiberglass hull as well as other fiberglass parts can be yellow gel or other colors as you want .



 This boat rib520A can have multipurpose that delivers great performance and function , Great for clubs ,sailing organizations , commercial or rescue uses .



RIB is called rigid inflatable boat  constructed with a solid, shaped hull and flexible tubes at the gunwale. Featuring stable design, high performance and high capacity, it is a development of the inflatable boat. The inflatable collar allows the vessel to maintain buoyancy even if a large quantity of water is shipped aboard due to bad sea conditions.



1.Technical Data :



Model Length(cm) Beam(cm) Hull length(cm) Hull width(cm) No.of chamber Tube Dia.(cm) Max persons Engine power(HP) Net weight(kgs) Packing size(cm)
RIB520A 520 218 460 175 5 53 8+1 90 400 460*180*100



2. Standard Euipments :



center console with cushions(including windshield,4 point switch ,oil gauge), seat box(with cushions and SS frame roll) , bow box,steering system,FRP light arch or SS light arch  with navigation lights,bilge pump,fuel tank,+Foot pump; +Repair Kit; +boat cover



3. Optional Equipments :



 canopy ,teak floor,  boat trailer ,fiberglass step , butterfly archor  etc.



4.  Other Features :



 Rib520A  is made of  1.2mm Korea PVC , Or Hypalon 1000 Denier polyester fabric which has been specially coated on both sides with PVC or Hyaplon . The boat could be made of Hypalone fabric as per request

 1. finerglass hull

2.erasion  resistance;

3.Inside high polyester fabric offers:

4. Dimensional stability;



5. Our advantages :



1.Experienced technicians and engineers that create unique and custom designs
2.Quality control system  for each boat during in produce process
3.Raw material checked, with good quality supplier.
4.Each boat is tested for air leakage . It is then kept inflated for 36 hours followed by a pressure check
5.Orca Hypalon and Fiberglass hull with 5 years warranty, Korea pvc with 3 years warranty
6.All the boats made base on international standard ISO6185, IS012217 and with CE certification
7.Long-term partnerships with strategic suppliers
8.Good feedback from different customer`s driving pictures

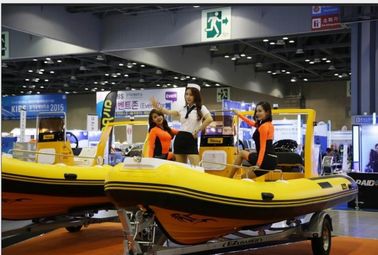

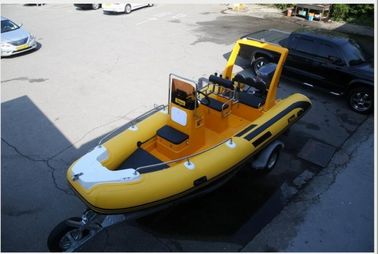

6.Reference pictures :





17ft orca hypalon inflatable rib boat  rib520A with sunbed center console rear cabin CE certificate



17ft orca hypalon inflatable rib boat  rib520A with sunbed center console rear cabin CE certificate
