480 Cm PVC Small Rib Boat 216 KGS Multifunctional Angler Panga Boats With Fish Hold

Certification
Good quality Small Rib Boat for sales
I'm Online Chat Now

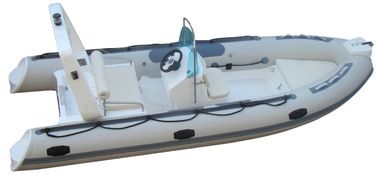

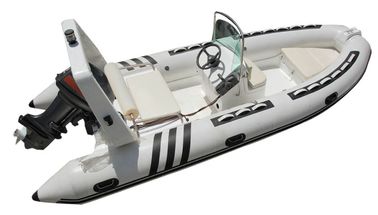

480 Cm PVC Small Rib Boat 216 KGS Multifunctional Angler Panga Boats With Fish Hold

China 480 Cm PVC Small Rib Boat 216 KGS Multifunctional Angler Panga Boats With Fish Hold supplier
480 Cm PVC Small Rib Boat 216 KGS Multifunctional Angler Panga Boats With Fish Hold supplier 480 Cm PVC Small Rib Boat 216 KGS Multifunctional Angler Panga Boats With Fish Hold supplier 480 Cm PVC Small Rib Boat 216 KGS Multifunctional Angler Panga Boats With Fish Hold supplier

Large Image :  480 Cm PVC Small Rib Boat 216 KGS Multifunctional Angler Panga Boats With Fish Hold

Product Details:

Place of Origin: China
Brand Name: CMEC
Certification: CE
Model Number: Rib480C

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Carton and weaving bag
Delivery Time: 8-10 days for sample
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 PCS per Month
Contact Now
Detailed Product Description
Materials: Fiberglass + PVC Size: 480cm Length
Weight: 216KGS Power: 50HP
Color: Light Grey Or Other Packing Size: 410cm*160cm*70cm
Max Person: 8

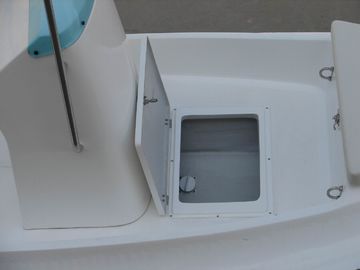

480cm PVC panga boat inflatable rib boat rib480C rigid hull fuel tank with fishhold



The multifunctional boat originated from the traditional FRP boat with inflatable tube .

The rib series has the advantages of fiberglass high capacity and stability as well as the inflatable's high security. In the extreme circumstance , we can call it the Unsinkable boats even  it is overturned by 10 meters high waves , it will aslo not sink -just because of the air bag which has many air chambers .



Here we give you some information on RIB as follows.


A rigid inflatable boat (RIB) is a light boat constructed with a solid, shaped hull and flexible tubes at the gunwale. Featuring stable design, high performance and high capacity, it is a development of the inflatable boat. The inflatable collar allows the vessel to maintain buoyancy even if a large quantity of water is shipped aboard due to bad sea conditions.



RIB can be used as work boats in trades that operate on the water, lifeboats and military craft that are used in patrol roles and to transport troops between vessels or ashore.

The rigid inflatable boat gives you the feeling and performance of a ship. It has proper hardness and deep V-shaped bottom. RIB's fiberglass hull enables it to cleave through the waves like an ordinary rigid boat. However, inflated tubes make RIB more stable and buoyant than ordinary rigid boat. Moreover, RIB's light weight makes it easy to be transported by a trailer.









1. Specification





Model Length(cm) Beam(cm) Hull length(cm) Hull width(cm) No.of chamber Tube Dia.(cm) Max persons Engine power(HP) Net weight(kgs) Packing size(cm)
RIB480C 480 207 413 154 4 48 8 50 190 410*160*70



2. Standard Euipments :



 center console with cushions(including windshield,4 point switch ,oil gauge), seat box(with cushions and SS frame roll) , bow box,steering system,FRP light arch with navigation lights ,60L fuel tank, fiberglass stepend, boat cover , foot pump , Repair Kit .



3. Optional Equipments :



 canopy , boat trailer , etc.



4.  Other Features :



 Rib480C  is made of  1.2mm Korea PVC , Or Hypalon 1000 Denier polyester fabric which has been specially coated on both sides with PVC or Hyaplon . The boat could be made of Hypalone fabric as per request

 Fiberglass hull

*Outside PVC layer offers:
Abrasion resistance;
Extreme condition resistance;
Chemical resistance.

*Inside high polyester fabric offers:
Dimensional stability;
Tensile and tear strength.



5. Warranty :



We also provide excellent after-sale services and 3 - 5 year (3 years for PVC , 5 years for Hypalon )

warranty of the hull and materials.Each boat comes with a repair kit containing the maintenance tools and materials(fabrid and glue).The replacement parts will be offered for free within warranty period.In the event that the boat has really quality defects within warranty period,we will offer free replacement parts after the receipt of the related pictures and descriptions supporting the factor; In case of serious quality problems ,a replacement boat will be sent to the customers with next order shipment.
